(Pre-) Assembling

(Pre-) Assembling of individual components or final assembled products.

(Pre-) Assembling

(Pre-) Assembling of individual components or final assembled products.

(Pre-) Assembling

We supply you with custom pre-picked components or fully assembled products and fasteners which can optimize your workflows and shorten installation times to a minimum. Deliveries are not only made just in time, but also just in the right place. This saves you valuable working time and allows you to concentrate on the essentials with your teams.

  • Pre-assembled and fully assembled products
  • Pre-picked made-to-order fasteners for suspension systems
  • Technically sound installations
  • Special heavy-duty fastening systems
  • Assembly of HVAC installation modules
HCP 6000+

HCP 6000+ HIGH CORROSION PROTECTION

Surface coatings that meet the highest standards

Under our WÜRTH - HCP 6000+ brand, we offer you optimum corrosion protection for your applications. HCP 6000+ exceeds the requirements of corrosion category C5 High according to DIN EN ISO 12944. When selecting the right corrosion protection, you have to consider the environmental conditions such as humidity, temperature, air contamination (sulfur & chlorides) as well as salt load. The service life of the components making up the structure to be protected play a role in the selection of an appropriate system. What is behind this high-performance HCP coating? HCP is a modified cathodic dip coating (CDC), which is applied in a special three-layer structure consisting of an adhesive primer, a water-soluble epoxy resin coating, which is created by applying a direct current and then curing the component. After this, the electrostatically charged powder coating is sprayed on, and melted and fused into a uniform coating in a curing oven at 180°C. A wide range of RAL colors is available. With this corrosion protection, fastening systems on steel can meet the load criteria of DIN EN ISO 12944 in the highest corrosion category C5-I or C5 M/CX. The exposure to neutral salt spray (according to ISO 9227) meets the H = High criteria and exceeds the minimum requirement of 1,440 hours. Our system WÜRTH - HCP 6000+ has lasted more than 6,000 hours in the salt spray test.

The benefits of the HCP system include:

  • Complete and uniform coating even around cavities, corners and edges
  • Resistant to acids, alkaline solutions, oils and fuels
  • Homogeneous and smooth surface
  • Low-pollutant coating process and environmentally friendly (solvent-free) coating system
  • Scratch- and impact-resistant
  • The coating’s excellent adhesion to the steel substrate prevents rust from forming under the coating after minor scratches

Examples of pre-assembled components

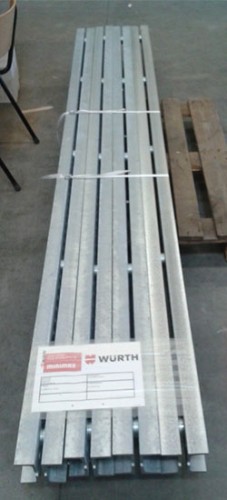

heavy-duty rails

The cut-to-length W-SL heavy-duty
railscome with a consignment note
and are pre-assembled for the
special construction phase.

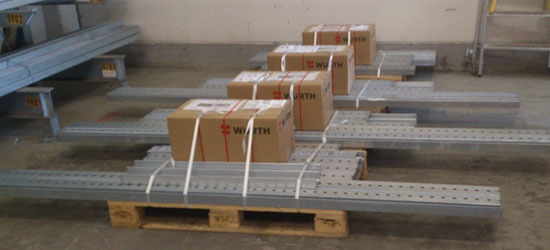

Cut to length heavy-duty rails

Cut-to-length W-SL heavy-duty rails
and pre-picked small parts are
palletized for a specific construction
phase, including all accompanying
documents.

Varifix

The cut-to-length rails of the
Varifix rail mounting system,
including accompanying
documents, are labelled
according to their construction
phase.

prefabricated component

A prefabricated component
of the W-SL heavy-duty system
consisting of cut-to-length
heavy-duty rails, connecting plates,
bolts, nuts, washers and a
consignment note for the correct
installation location.

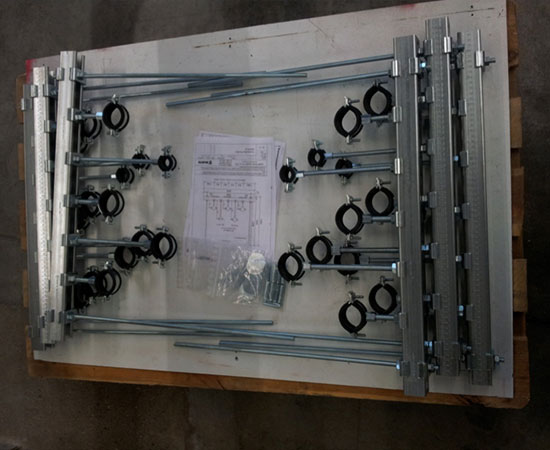

prefabricated components

Prefabricated components of the Varifix
quick mounting system consisting of cut
mounting rails, pipe clamps, threaded rods,
nuts, washers and a consignment note for
the correct installation location as well as
a final installation drawing.

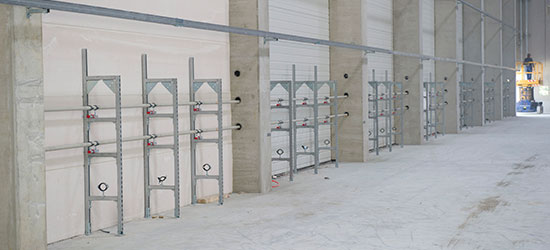

assembled product groups

Fully assembled product groups
in a warehouse, consisting of
cut-to-length rails, brackets, pipe clamps,
pushing slides, bolts and nuts.
Installed by a Würth assembly team.
