CAD DATABASE OF WÜRTH - OUR ONLINE LIBRARY
In our online database you will find high-quality product documents and CAD data in various levels of detail and file formats for 2D, 3D and BIM applications.
To Our Online-Databse
More time for core business
As an engineer, planner, or architect, you don't want to waste your valuable time creating CAD data. That's why you can find high-quality CAD data for many of our products in the Würth online database – free of charge.
2D and 3D PDF files support you in your data storage and thanks to the integrated Click2CAD Toolbox, BIM data sets are now also available for planning with Revit.
Your advantages with the Würth CAD database
- Compatible with all CAD systems
- No additional software required
- High-quality CAD data
- Effective and time-saving design
- Optimized order processing
- Available online 24/7
- Free of charge
How to Work with The Würth CAD Database:
1. Navigate through the product structure to your desired product.
2. If you know the article number, you can find it directly by entering it in the search field.
3. Once you have reached the item list, you can access the corresponding CAD model by clicking on the "CAD" symbol or by clicking on the product image.

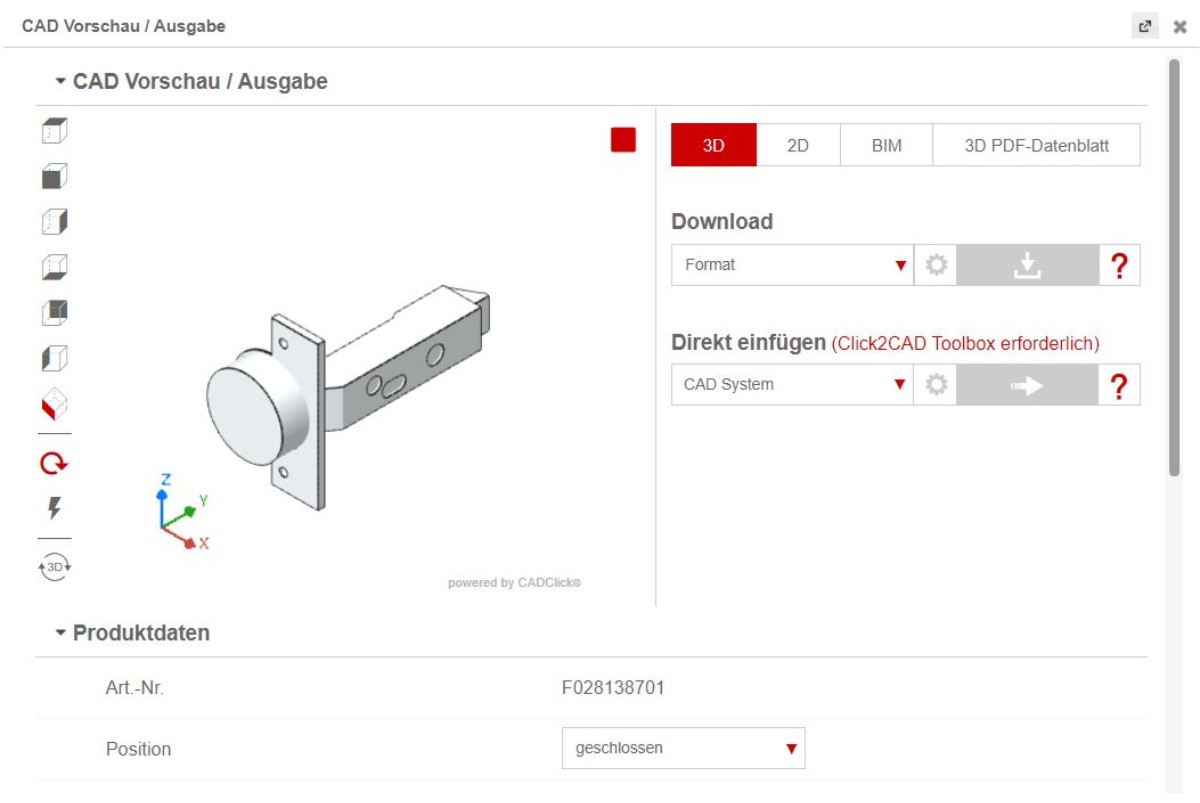

4. The CAD preview offers you the option to switch between 2D or 3D view using the corresponding tabs.
5. You can then select the required CAD format and click the "Download" button to create the CAD model in the selected format. The CAD model will be generated and saved in the "Download Center."
6. In the "Download Center" you can download your cached data or send it by email.
7. Alternatively, you can transfer the CAD model directly to your CAD system using the "Direct Insert" option. You will need our Click2CAD Toolbox for this.
8. The toolbox can be installed as a service or started without installation.
To Our Online-DatabaseDo you have any questions or suggestions about our CAD database?
We welcome your ideas and are happy to help with any problems. Please use Our Contact Form.
